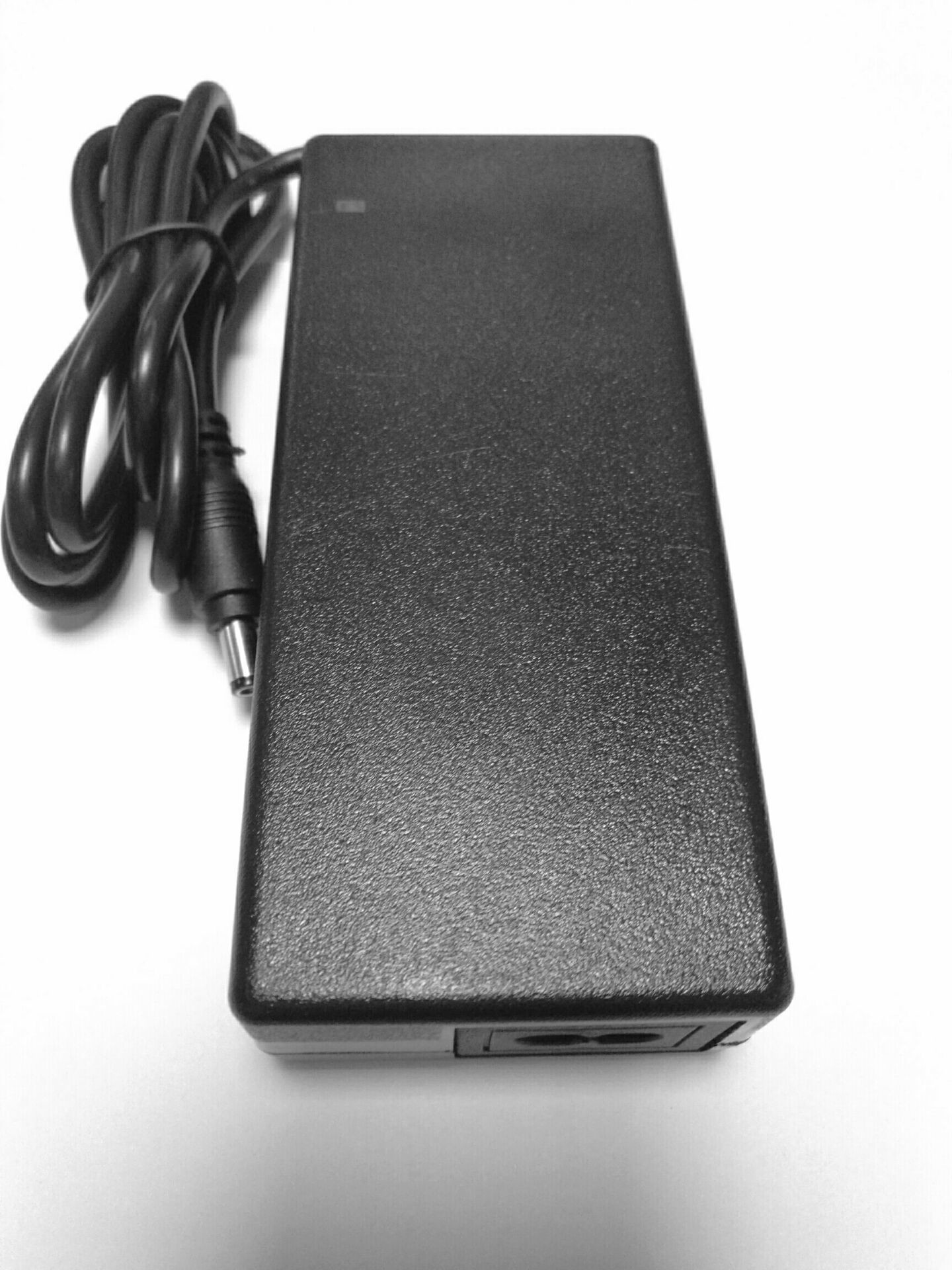

12V 120W black universal ac - dc desk top power adapter with FCC CE PSE apprvals
Brief description:
produce name:desk top ac adapter:
Input voltage:90-264VAC
Input frequency:47--63Hz
Output:12V 10A, 12V 9.5A,24V5A
Colour:black
AC pin:US,EU,UK,CN,JP
AC cable:1.2m 1.5m 1.8m
Certificates:CE GS RoHs CCC PSE EMC
Specification:
| Input | Rated input voltage | 120-240VAC |
| Input voltage range | 90-264VAC |
| Rated frequency | 50/60 Hz |
| Input frequency range | 47-63Hz |
| Input AC current | 3A max |
| Inrush current | 20A max |
| Output | Rated output voltage | 12VDC 24VDC |
| Rated output current | 5A 9.5A 10A |
| Rated power | 120W Max |
| Ripple and noise | 120mVp--p |
| Standby power consumption | 0.3W max |
| Turn-on | 3S |
| Hold-up | 5mS |
| OVP | yes |
| OCP | yes |
| Short Circuit prodection | yes |
| Reliability | Hi-pot | 3000 VAC |
| Burn-In | 4hours |
| Leakage current | 0.25mA |
| EMI standards | meet |
| RoHS compliant | meet |
| MTBF | 50000 hours |
| Drop test | yes |
| Insulation resistance | yes |
| Environmental | Operating temperature | 0 to 40 degrees |
| Operating humidity | 5% to 90% |
| Storge temperature | -20 degrees to 85 degrees |
| Storge humidity | -% to 90% |
| Safety approvals | FCC/CE/GS/CCC/PSE/KA |
| Warranty | 2 years |
Features:
1. High efficiency:>88% at least
2. Safety licences:main approvals of the world are available
3. Burn -in:100% full load
4. MTBF:50000 hours
5. Worldwide safety approvls are available
Application:
| Video equipemnt | TV box CCTV, router, set-top-box |
| Audio equipment | Speaker, microphone,recording device |
| Communication device | smart phone nootbook,tablet PC |
| Household appliance | air purifier, water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| others | PS4,segway,game player, electronic toys |
Competitive advantages:
1. Our pricing is much better than others.
2. We have more than QC / QA staffs to make sure each adapter to meet our high quality standard ISO9001
3. We have 10 production lines to make sure 15-25 days lead time and our production capacity is morn than 100,000 pcs per month.
4. Our R / D team has t least more than 10 years in adapter design.
5. We have oversea department to handle customer's requirement within 24 hours.
6. Prefect after-sales service.
Widely usage of the 12V10A 24V5A desk top universal power adapter:
